Anti Corrosive TMT Steel Bars

Welspun Shield > Products

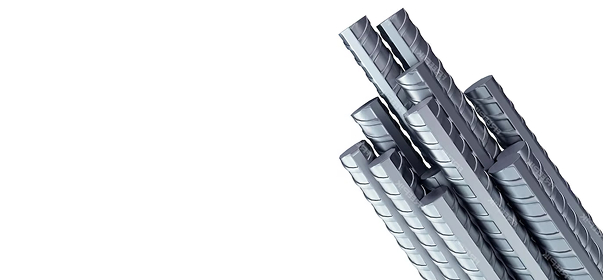

W Welspun Shield Anti Corrosive TMT Steel Bars are high-quality steel bars manufactured by Welspun, a leading global producer of steel products. These TMT (Thermo Mechanically Treated) bars are designed to meet the requirements of modern construction, offering enhanced strength, flexibility, and durability. They are particularly suitable for use in buildings, bridges, roads, and other infrastructure projects.

Welspun Shield Anti Corrosive TMT Steel Bars are considered an excellent choice for constructing durable, safe, and high-quality buildings and structures

Here are some key features and benefits of Welspun Shield Extra Ductile TMT Steel Bars:

ductility
Ductility

As the name suggests, these bars are anti corrosive, meaning they can bend or stretch without breaking, making them ideal for areas prone to earthquakes or other stress conditions.

Seismic Resistance
Seismic Resistance

The bars' flexibility and strength make them ideal for earthquake-resistant construction, as they can absorb shocks without cracking or failing.

Superior Weldability
Superior Weldability

These TMT bars are designed for easy welding, which makes them suitable for various construction applications.

Superior Bendability
Superior Bendability

The extra ductility allows for easier bending without compromising the material’s integrity, making it easier to shape and fit the bars during construction.

High Strength
High Strength

The TMT process enhances the steel's strength, making it resistant to both tension and compression forces. This ensures the structure's stability and longevity.

Corrosion Resistance
Corrosion Resistance

The bars are resistant to corrosion due to the high-quality raw materials used in production, which enhances the life of the construction.

Environmental Benefits
Environmental Benefits

The production process of these bars is designed to be energy-efficient and environmentally friendly.

Chemical & Mechanical Properties of Steel Grades

Chemical & Mechanical Properties
Parameters Grade Fe500D CRS Grade Fe550D CRS
Fe 500D CRS as per BIS 1786 Welspun Shield Fe500D CRS Fe 550D CRS as per BIS 1786 Welspun Shield Fe550D CRS
% Carbon 0.15 0.14 0.15 0.14
% Sulphur (Max) 0.040 0.035 0.040 0.035
% Phosphorus (Max) 0.120 0.100 0.120 0.080
% Carbon Equivalent (Max) 0.53 0.50 0.53 0.50
% CRE 0.40 0.40 0.40 0.40
Yield Stress (N/mm²) min 500 520 550 565
Tensile Strength (N/mm²) min 565 600 600 650
UTS/YS Ratio min 1.10 1.10 1.08 1.10
% Elongation min 16 16.5 14.5 14.5

FREQUENTLY ASKED QUESTIONS​

Have questions about Welspun Shield Anti Corrosive TMT Steel Bars? Find answers to the most common inquiries below. If you need more details, feel free to reach out to our team!

These bars offer superior strength, flexibility, and corrosion resistance, making them ideal for modern infrastructure and construction projects.

Yes, their high ductility enables them to absorb seismic shocks, enhancing structural stability in earthquake-prone regions.

Manufactured with high-quality raw materials, these bars resist rust, reducing maintenance costs and extending the lifespan of structures.

Our products are available through authorized distributors and dealers sales channels. Contact our sales team for bulk orders, pricing details, and delivery options.

Our experts are available to assist you with specifications, applications, and customized solutions. Reach out to our contact page to discuss your queries.
